Jib Cranes / General Features

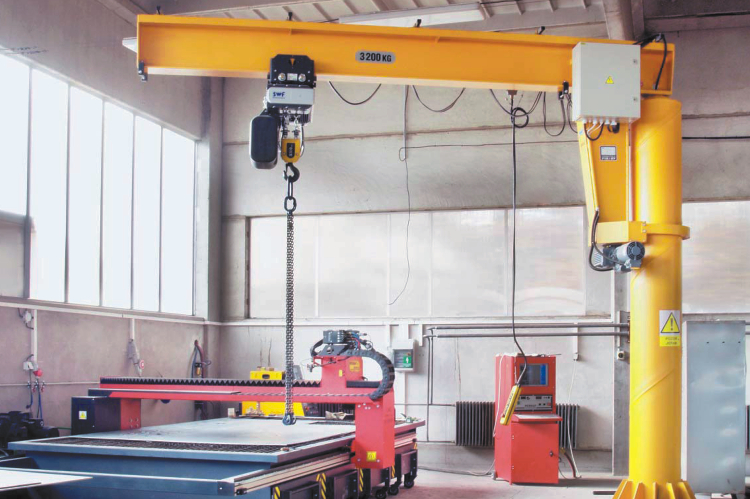

Our jib cranes are designed to find the best solution for you in tight spaces. Our jib cranes has manually or electric revolving systems with 1800 – 2700 – 3600 angles. We can also find special solutions for you by integrating chain hoists and rope hoists to the jib cranes


GENERAL FEATURES


Load capacity (SWL)


  250 – 10.000 kg


Hoisting speeds


  0…16 m/min



Jib crane revolving speeds


  0,5 – 2 d/min


Jib crane outreach


  0... 30 m/min


Technical Specifications

      • * Column or wall mounted jib cranes

      • * Revolving angles up to 3600

      • * Duty groups FEM M3 (1Bm) – M6 (3m)

      • * Lifting class / Stress Load Group DIN H2B2 – H2B3

      • * Explosion proofed cranes / hoists (Ex-Proof)

      • * True vertical lift

      • * Radio frequency controlled remote controllers

      • * Modular structure and easy maintenance

      • * Electronic hoist condition monitoring

      • * Load measurement system
